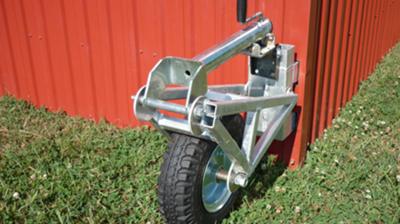

retractable wheel

retractable wheel

retractable wheel

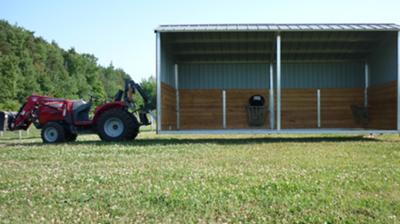

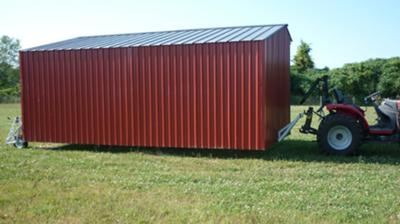

moving livestock shelter

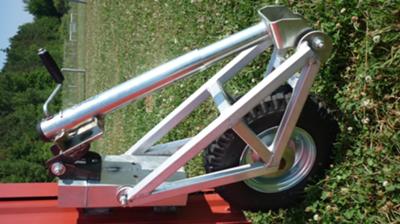

custom made retractable wheel
Livestock Shelter and Feed Station

Project: A portable livestock shelter and feed station.


I needed a shelter for my small flock of sheep (14 ewes plus up to 20 lambs). I built two sheds using 3" square X 3/16" wall aluminum tube for the frame and covered with farm building metal siding for the roof and sides.

Because they are also in the same pasture with my horses I lined the bottom four feet of the sheds with 2x6 lumber in case they wanted to have a kick at it. The shelters need to be easily moveable so the grass in the pasture won't die off for lack of sunshine and overgrazing.

In season I move the sheds every couple of days. To make this easy I built retractable wheels for one end that raise and lower using a trailer jack and at the other end made a ring type pick-up that fits the hook on the three point lift of my tractor.

So far the larger one (10' X 20') has flipped over in a windstorm, after pulling out the ground anchors, and then again when I was towing it with the tractor to re-position it to a calmer area, with nothing but cosmetic damage.

Comments for Livestock Shelter and Feed Station

Average Rating starstarstarstar

Click here to add your own comments

Mar 06, 2016
Rating
starstarstarstarstar
Great Idea
by: Kim

G'day, I've been looking for this idea for the last 18 months. What would the lift load be ? or is that function of the build gauge ?
Cheers
Kim

Sep 25, 2012
Rating
star
More information
by: Aaron Williams

I would be glad to give this a 5 star rating if their was some useful information. Please post more information on the entire setup.

Mar 12, 2012
Rating
starstarstarstarstar
Great idea.
by: Anonymous

I have horses out in pasture and can think of several uses for this project. Wish I had more detail on the lifts.
