Mobile Gantry Crane With Wheels And Chain Hoist?

by Gianluca
(Italy)

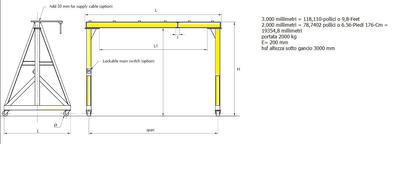

Mobile Gantry Crane Drawing

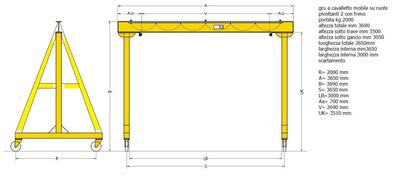

Mobile Gantry Crane Drawing

Mobile Gantry Crane Drawing
Mobile Gantry Crane Specs

Can you help me with my build of a chain hoist mobile gantry crane?


I would like to build a 2 ton gantry crane to unload the truck or do heavy work or lifting in my garage.

Height: 10 feet.
Width 10 feet.
Width of base flow gauge 7 feet 2 tons of iron beams and profiles adequate.

Hea beams are from 120 feet for vertical ipe 200 for horizontal crossbar. Crossbar support base gauge wheels ipe 160, high capacity, kg 600.

Could you could help me with practical advice?
Thanks.

Comments for Mobile Gantry Crane With Wheels And Chain Hoist?

Average Rating starstarstarstarstar

Click here to add your own comments

Jul 31, 2014
Rating
starstarstarstarstar
Gantry Crane Drawings and Guide
by: WcWelding.com

It sounds like you want to build a chain hoist like the vintage one we have up on our site. The plans are still viable today. You can read the plans and the step by step directions here: gantry crane with wheels/ .
