Welding Trailer Plans!

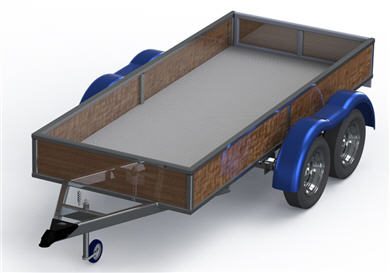

welding trailer

Our new welding trailer plans are 22 pages of very crisp and clear. You'll find the plans to be very specific and easy to follow.

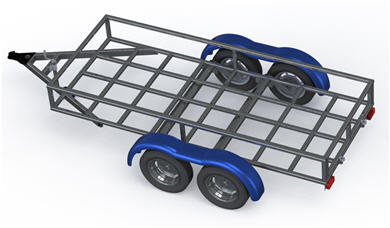

The trailer construction is very strong. It's made of square and rectangular steel. The size of the pipe is quite common (2” x 2” and 4” x 2”).

Welding Trailer Plans - Features of The Trailer:

  • Gross Vehicle Weight (GVW): 6000 lbs.
  • Overall length: 188 “
  • Overall width: 89”
  • Wheel base: 30”
  • Track: 79”
  • Loading box sizes: 144 x 60 inches
  • Brake system: yes, electrical.
  • Tires, rims: 195/70 R 15, 5 J 15 with 0” offset.
  • Axles: U 35, AL-KO, with electrical drum brakes

There is a necessary brake controller for the electrical brakes as well as other purchased parts (coupling, locks, lighting and signaling items, fenders, etc.); these parts could be purchased from a on-line store (such as www.etrailer.com).


GUARANTEE: If you are not satisfied with these welding trailer plans for any reason at all just send us an email along with your receipt number and tell us why and we will refund your money. All we ask is that you do so within 30 days. Fair enough?

Welder Trailer Plans: 22 Pages.
$29.95 $5.95 for a limited time.
Add to Cart

View Cart

HONESTe Online Member Seal Click to verify - Before you buy!

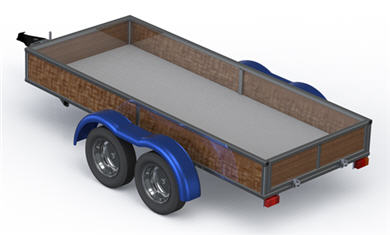

welder trailer
Add to Cart

View Cart

HONESTe Online Member Seal Click to verify - Before you buy!
