Making Straight Angles With Help of a Jig

by Jim Carr
(Pittsburgh, Pa)

Right Angle Jig

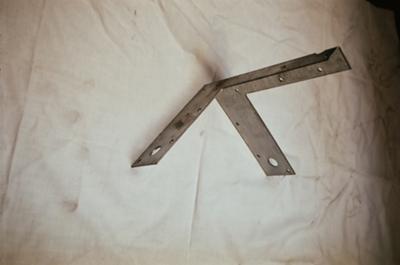

Right Angle Jig

Right Angle Jig

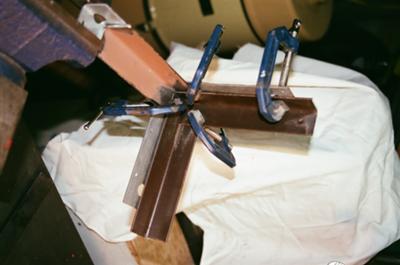

Welding Right Angle In The Jig

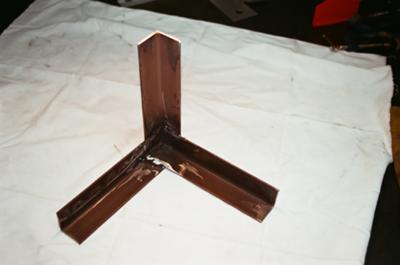

Welded Right Angle Piece
Straight Angle Weld

Sometimes making straight angles with angled steel can take three hands and many clamps.

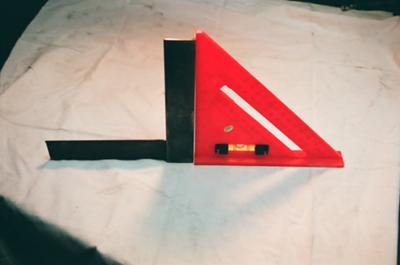

Lowe's stores have angles used to align three pieces of wood. I saw this particular piece and thought that it would make a good right angle jig. The photos show the jig, the angles in the jig that have just been welded, the welded piece and a right angle tool that shows how the jig can give you accuracy.
