Press Used For Making Segmented Bowls

by Rick Tanguay
(Southington, CT)

Segmented Press

Segmented Press

Segmented Press
Side View Of Press
Segmented Bowl
Segmented Urn

As a hobby, I began woodturning on a lathe. I progressed to making segmented decorative bowls and urns which are made up of numerous rings that need to glued and pressed together so the joints will be very tight. I constructed this press which does the job perfectly.


It weighs about sixty pounds. The base and top are 1.5" square tubing and the corner uprights are 1/8" 1.5" x 1.5" angle iron. The threaded shaft is 3/4" diameter steel. The footprint is 16" x 16" and it stands two feet high.

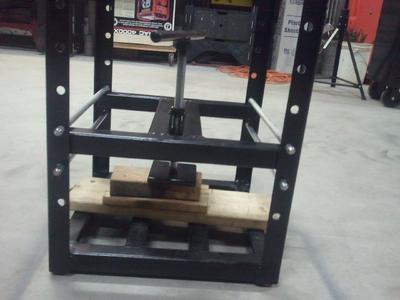

First Image: The silver bars on the press can be raised or lowered to accommodate different height projects.

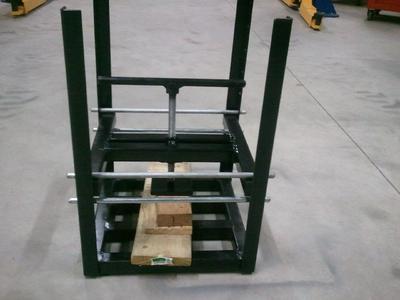

Second Image: Side view of press

Third Image: The press is used to make segmented bowls like this.

Fourth Image: Segmented Urn almost finished.

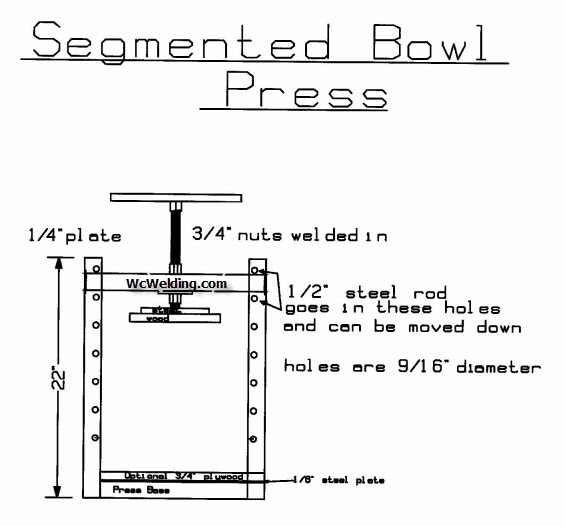

bowl press

Comments for Press Used For Making Segmented Bowls

Average Rating starstarstarstarstar

Click here to add your own comments

Dec 21, 2012
Rating
starstarstarstarstar
Great work!
by: Jim Carr

Well done; both the metal and wood work.

Dec 21, 2012
Rating
starstarstarstarstar
Press For Shells?
by: WcWelding.com

I need a press like that for building segmented drum shells. Do you have plans you can send us? Please contact us as soon as you have a moment. Thank you. WcWelding.com.

Contact Us Here:
http://www.wcwelding.com/contact-us.html

Click here to add your own comments

Join in and write your own page! It's easy to do. How? Simply click here to return to Welding Projects.
